Proper Extruder Rupture Disk Installation

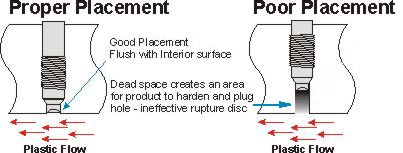

  • ProperPlacement_ExtruderRuptureDisk.jpg
Click image to enlarge
To ensure proper operation, MPI’s extruder rupture disks must be installed correctly. They must be installed flush with the inner extruder wall with a small recess of approximately 0.020”. Too much dead space can allow the plastic material to harden and form a plug, which can cause the extruder rupture disks to be ineffective and create a safety hazard. Proper Placement of MPI Extruder Rupture Disks
Full engineering support is available via email and phone.

MPI also carries a complete line of melt pressure products, including melt pressure transducers, melt pressure transmitters, melt pressure cables, connectors, hole plugs, hole drill kits, and hole clean kits.

Request a quote on extruder rupture disks. Contact MPI to learn more.
