½”-20 UNF Extruder Rupture Disks

  • MPI extruder rupture disks ½”-20UNF

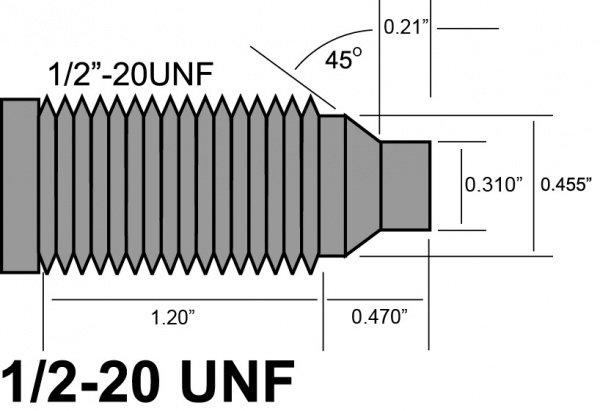

  • rupture-disk-tip-0.5-20.jpg
Click image to enlarge
MPI’s ½”-20 UNF thread extruder rupture disks are built to the most common specifications used in the plastics industry and are compatible with Dynisco, Gefran, Oseco, and Fike units. The ½”-20 UNF thread  designs are commonly used on extruders manufactured in North America, Europe, and China.

Because it provides stability over a wide temperature range, Inconel is our standard rupture disc material. However, other materials are available for special applications. Contact us to discuss your material requirements.

Request a quote on extruded rupture disks for your application, or contact MPI for more information.

MPI Extruder Rupture Disks  (download 1/2"-20UNF Brochure)



Features of ½”-20 UNF Extruder Rupture Disks

  • Compatible with Dynisco, Gefran, GP50, Oseco, Fike
  • Welded one-piece assembly
  • Ends available: hex, NPT, wrench flat, screwdriver slot
  • Standard Inconel disks provide stability over a wide temperature range
  • Standard 300 series stainless steel body (optional Inconel, Hastelloy, etc.)
  • Burst pressure ratings from 100 to 14,500psi (7–1000bar)
  • Burst disc size: 3/16”
  • Burst temperature ranges to 1,000°F (538°C)
  • Burst tolerance: ±5%
  • 100% factory leak tested (to 70% rating)
  • Engineering tech support available by email or phone
  • Large inventory of same day shipping items
  • Quick delivery on custom products
MPI also carries a complete line of melt pressure products, including melt pressure transducers, melt pressure transmitters, melt pressure cables, connectors, hole plugs, hole drill kits, and hole clean kits.

Request a quote on extruder rupture disks. Contact MPI to learn more.
